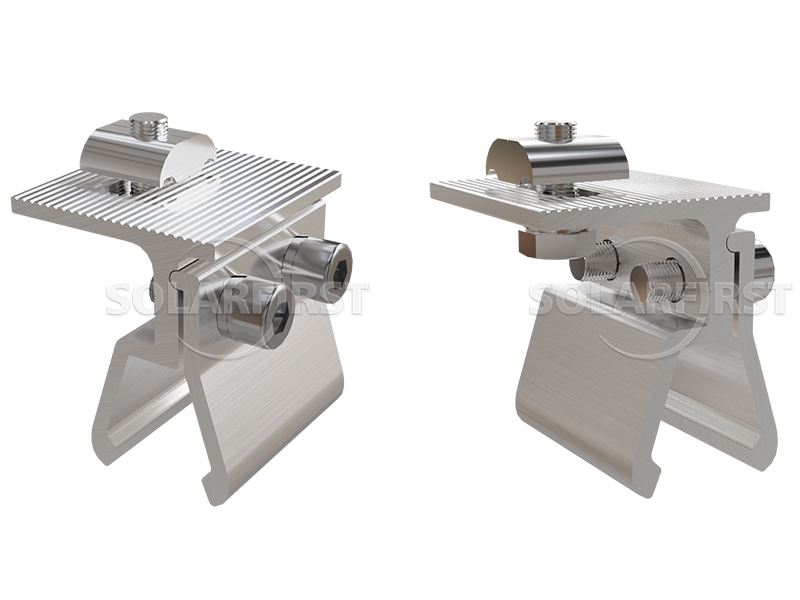

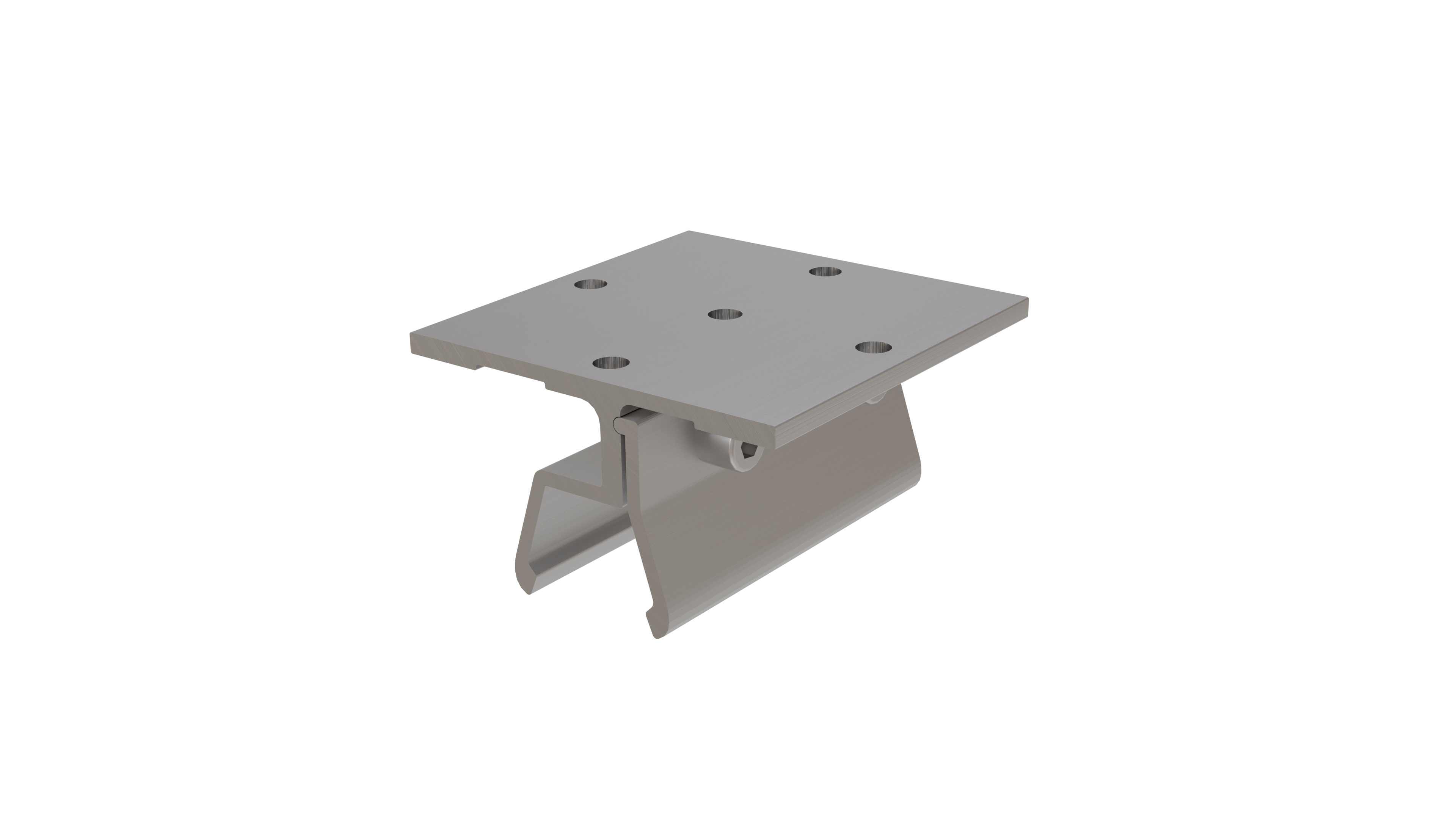

The Klip Lok Solar Metal Roof Mount is a professionally engineered, high-strength aluminum solution designed for a secure and precise connection to metal roof sheets. Its optimized design significantly reduces installation time and overall cost.
颜色/外观选项 :
Silver black材质及表面处理 :
AL6005-T5认证 :
ISO，SGS01 产品描述

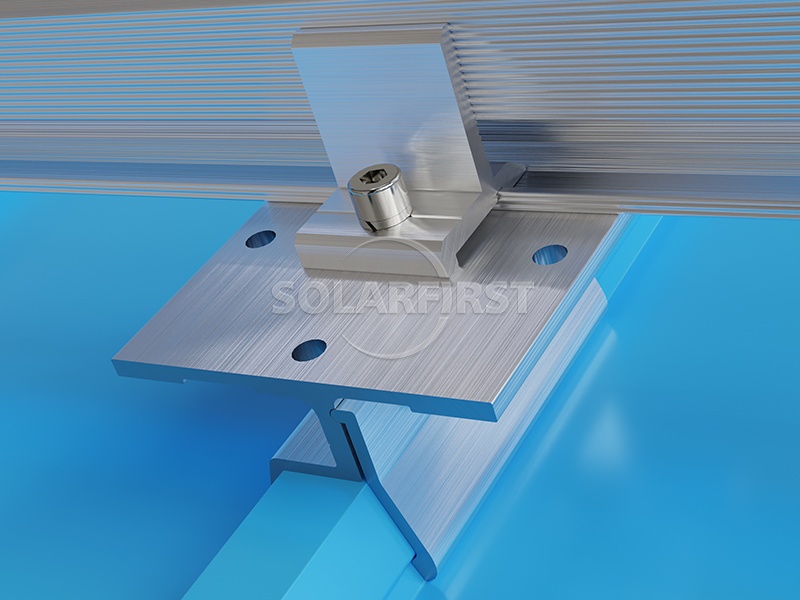

SF 金属屋顶支架是一款非穿透式支架解决方案，专为 Klip Lok 型金属屋顶板设计。其简洁的设计确保快速安装并降低总体成本。

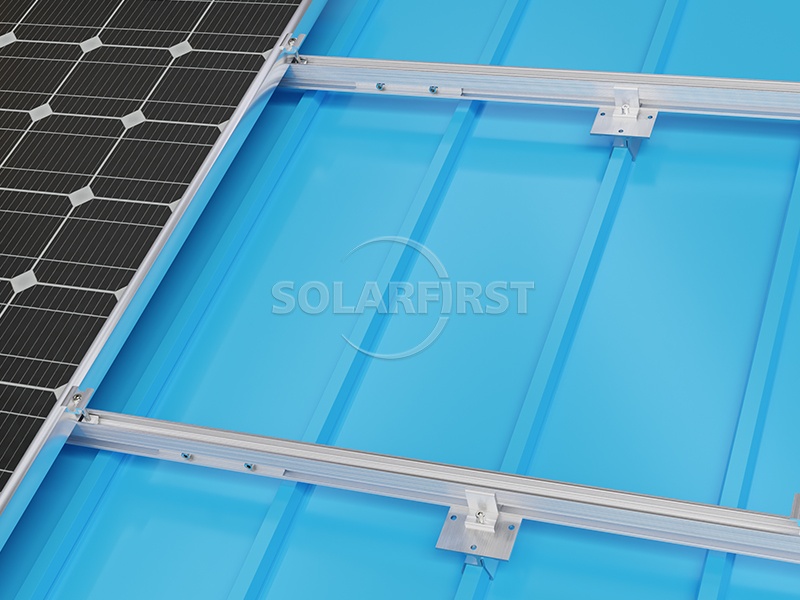

该系统采用阳极氧化铝夹具和导轨，对底层屋顶结构施加轻载。Klip Lok 夹具的具体设计各不相同，以匹配不同形状的屋顶板。为了增强多功能性，屋顶夹具可与 L 型脚架组合使用，以将太阳能组件提升至所需的倾斜角度。
该支架设计可承受高达 60 米/秒的高风荷载和 1.4 千牛/平方米的雪荷载，其设计符合 GB50009-2012 和 ASCE7-05 等多项国际标准。主要材料为阳极氧化铝 AL6005-T5 和不锈钢 SUS304，产品享有 10 年质保。

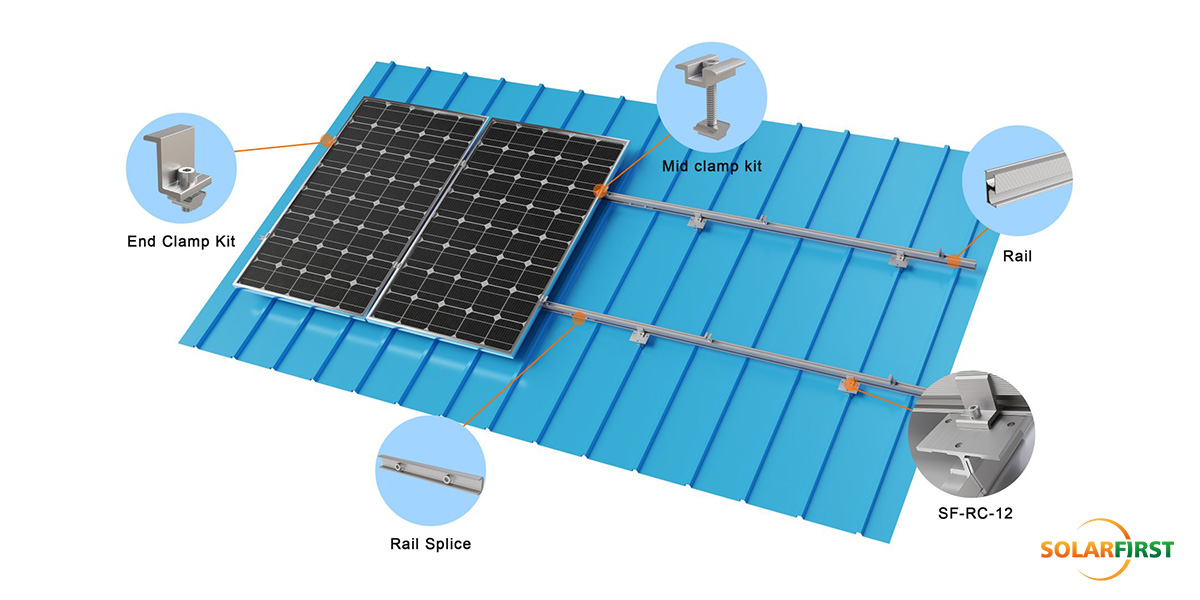

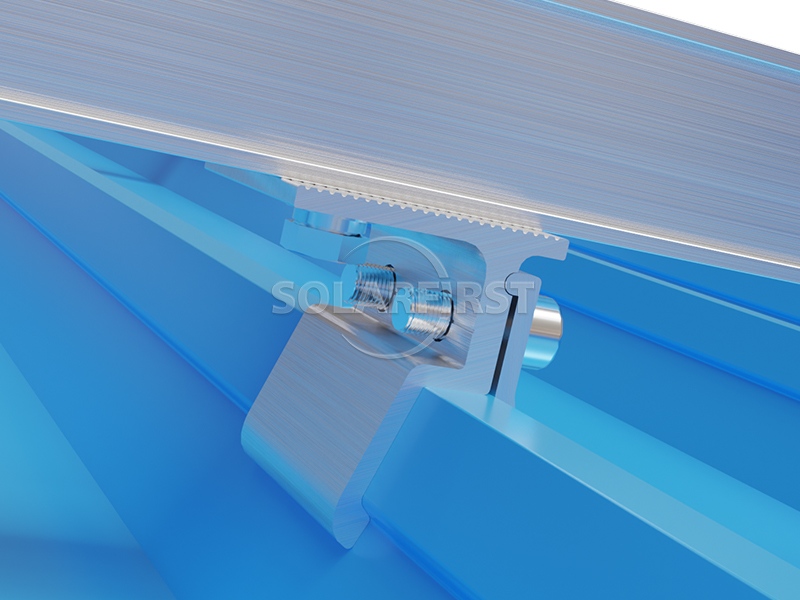

02 附件示意图

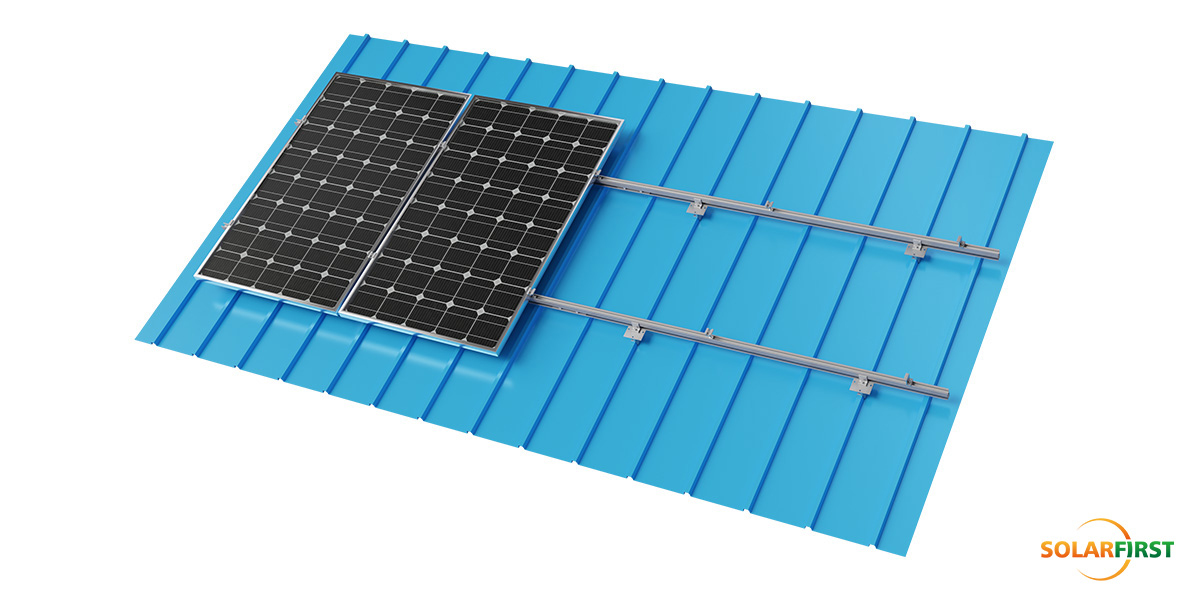

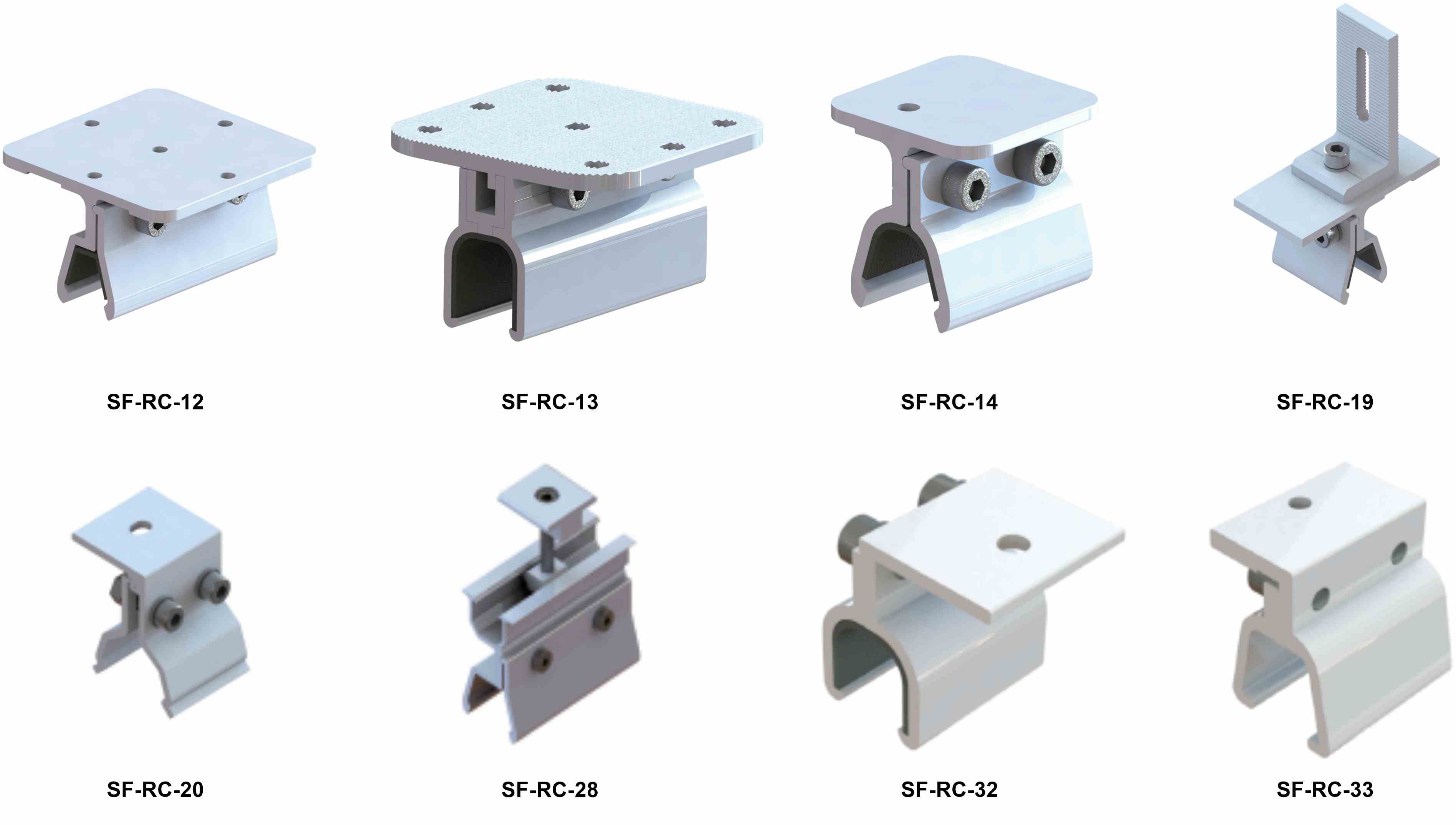

03 产品组件
04 核心工程参数
| 关键指标 | 参数详细信息 |

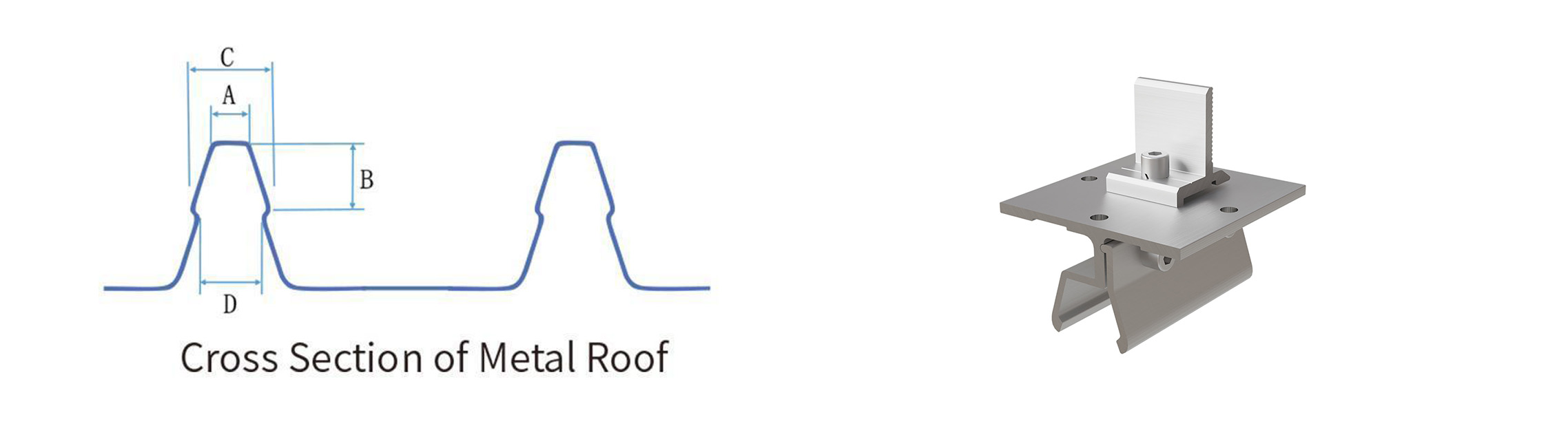

| 适用屋顶 | 金属屋顶（Klip Lok 型） |
| 风荷载 | 60米/秒 |
| 雪荷载 | 1.4千牛/平方米 |
| 倾斜角度 | 与屋顶平行 |
| 主要材质 | 阳极氧化铝AL6005-T5，不锈钢SUS304 |
| 标准 | GB50009-2012、EN1990:2002、ASCE7-05、AS/NZS1170、JIS C8955:2017、GB50429-2007 |
| 保修单 | 10年保修 |
05 适用场景
✔ 制造工厂：汽车/电子厂房屋顶
✔ 冷链物流中心：大型仓库屋顶
✔ 农业温室升级：轻钢框架温室
06 专业技术服务
▶ 方案设计与结构分析：
提供专业的负载报告、夹具布置模拟和BIM可视化解决方案。
▶ 现场勘探支持：
工程师对屋顶状况进行现场勘察，以确认安装条件和风险点。
▶ 安装培训及指导：
提供标准化的安装视频、操作手册及现场技术指导，确保施工零失误。
07 技术验证体系
提供标准化的安装视频、操作手册及现场技术指导，确保施工零失误。
07 技术验证体系
▶ 极端环境测试
• 通过-40℃低温冲击
• 盐雾腐蚀（3,000+小时）
• 60米/秒飓风模拟等极端测试。
▶ 第三方认证
• 持有TUV、SGS等机构颁发的抗风压、雪压、抗震、材质认证证书，确保全球项目的合规性。
08 包裹和运输
国际标准包装；货物从中国上海、宁波、天津、厦门、深圳港口发出。

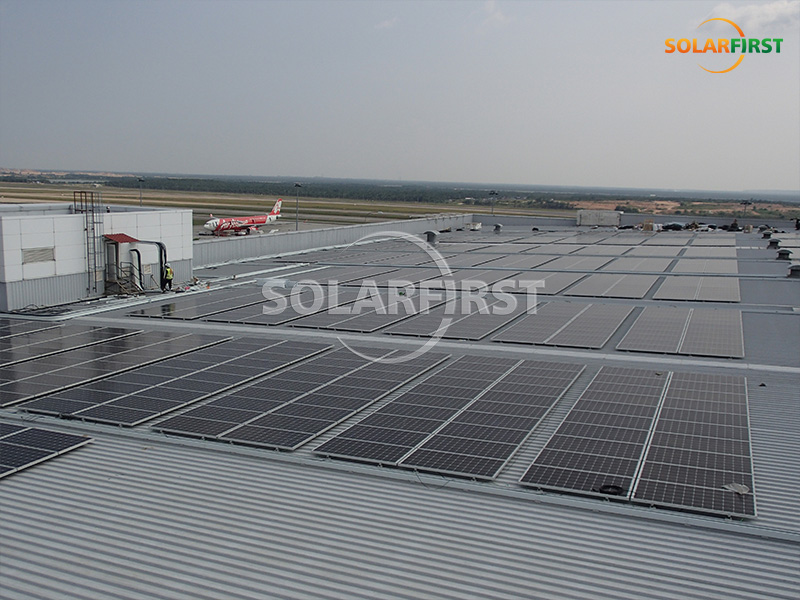

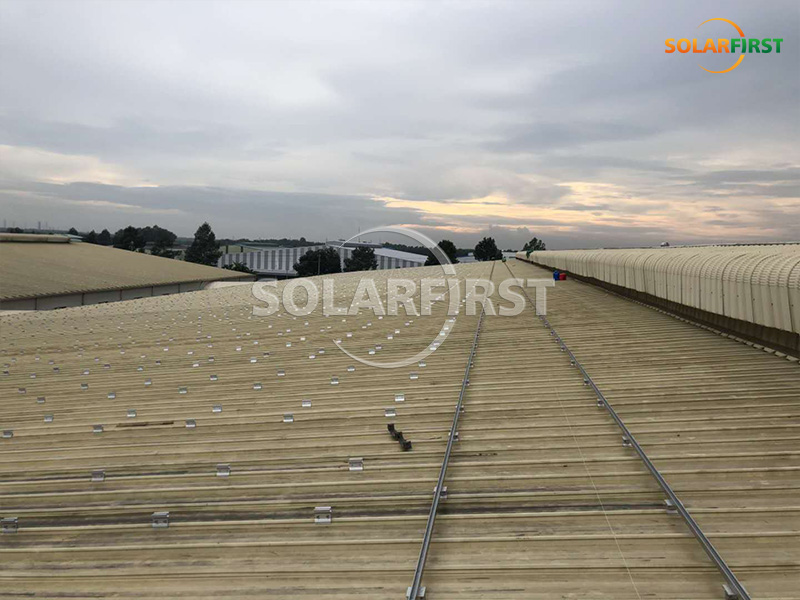

09项目案例
