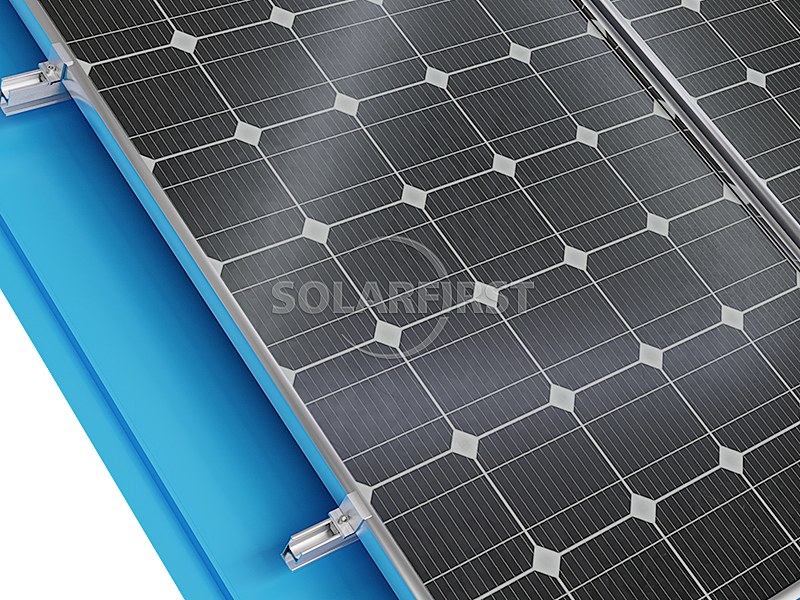

Standing seam roof clamps are non-penetrating devices used to securely attach various accessories, such as solar panels, snow guards, and fall protection systems, to standing seam metal roofs without drilling or damaging the roof surface.
颜色/外观选项 :
Silver black材质及表面处理 :
Anodized Aluminum 6005 T5, Stainless Steel 304认证 :
ISO，SGS01 产品描述

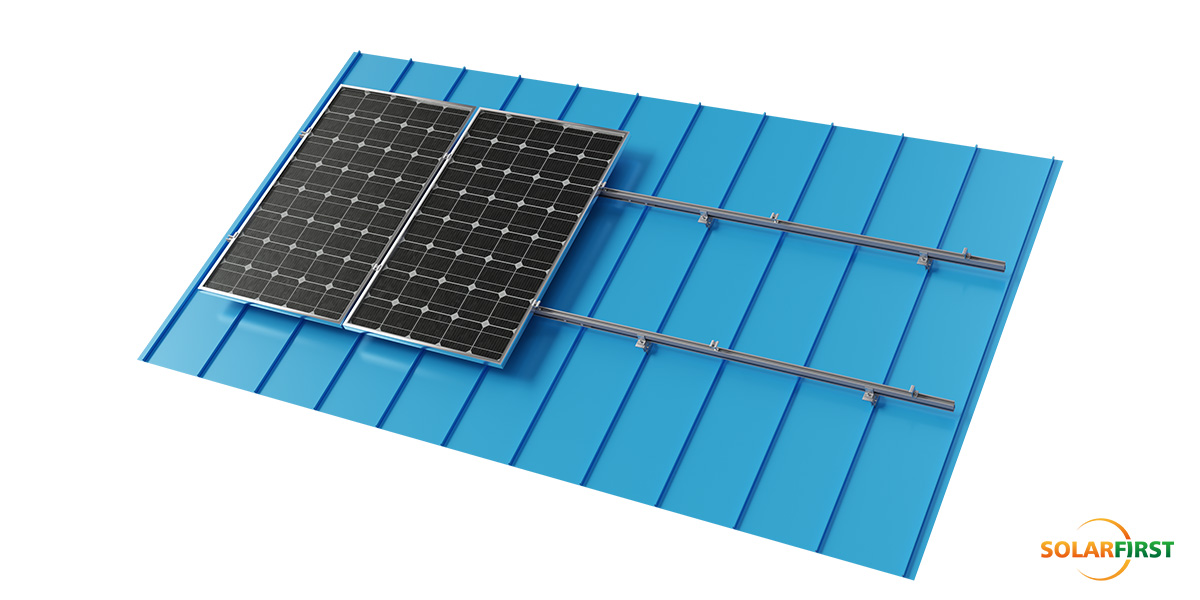

SF 金属屋顶支架搭配直立锁边屋顶夹，提供专业的直立锁边金属屋顶太阳能支架解决方案，专为直立锁边和锁边式金属屋面系统设计。这款非穿透式支架系统提供安全的安装解决方案，在保持屋顶完整性的同时，确保快速安装和经济高效。

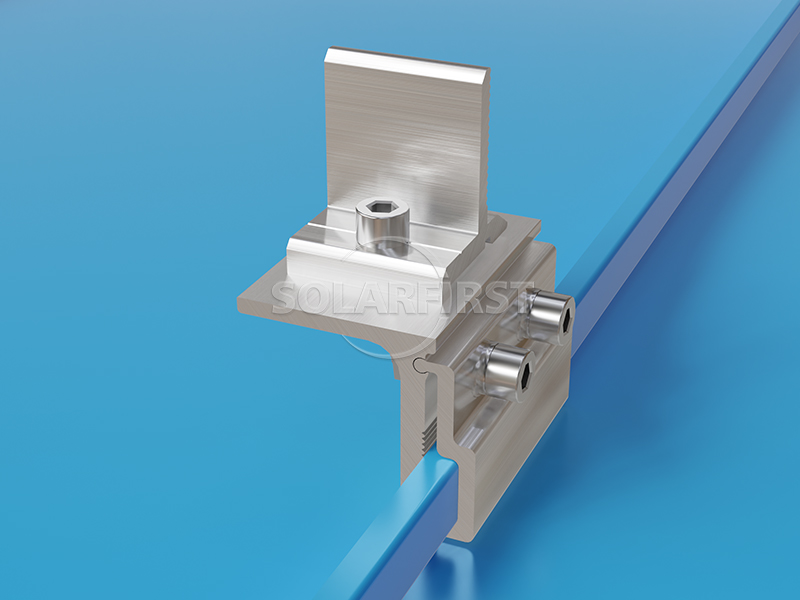

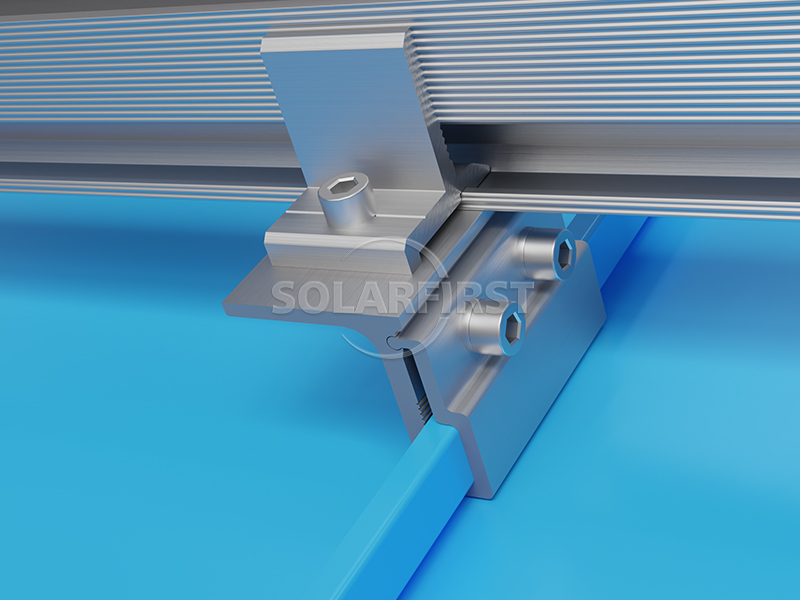

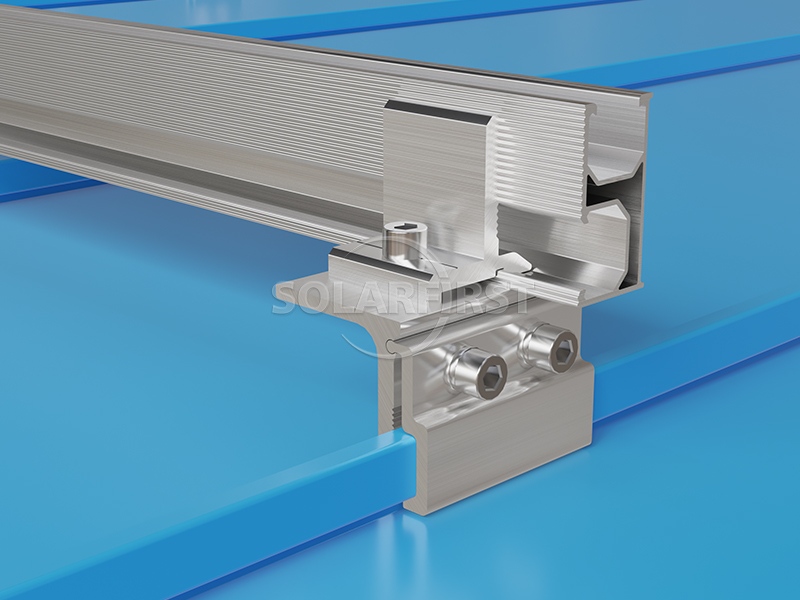

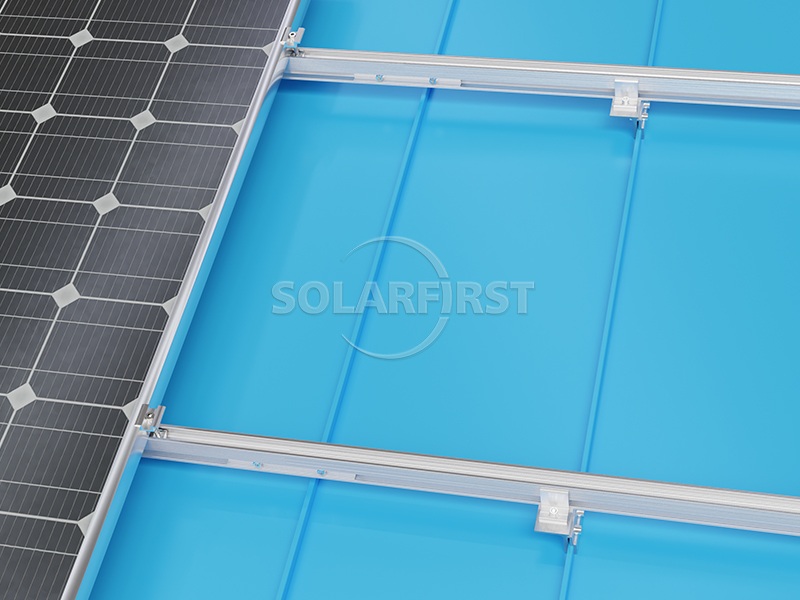

该系统采用精密设计的直立锁边支架，可牢固地安装在各种直立锁边屋顶型材上，无需穿透屋顶。这些专用金属屋顶安装支架组件与轻质铝制导轨配合使用，可均匀分布负载，最大限度地减少屋顶结构的额外应力。完整的太阳能屋顶安装系统包含专门设计的太阳能电池板夹，可确保组件与屋顶表面保持平行，同时提供安全可靠的固定。
为了增强灵活性，直立锁边夹具可与 L 型脚支架组合使用，以实现最佳的太阳能组件高度和定位。该安装解决方案经久耐用，性能卓越，可承受高达 60 米/秒的风荷载和 1.4 千牛/平方米的雪荷载。该系统符合 ASCE7-05 和 JIS C8955:2017 等国际标准，采用耐腐蚀阳极氧化铝 AL6005-T5 和不锈钢 SUS304 组件制成。这款直立锁边安装系统享有 10 年质保，为金属屋顶太阳能安装提供可靠且经济高效的解决方案。

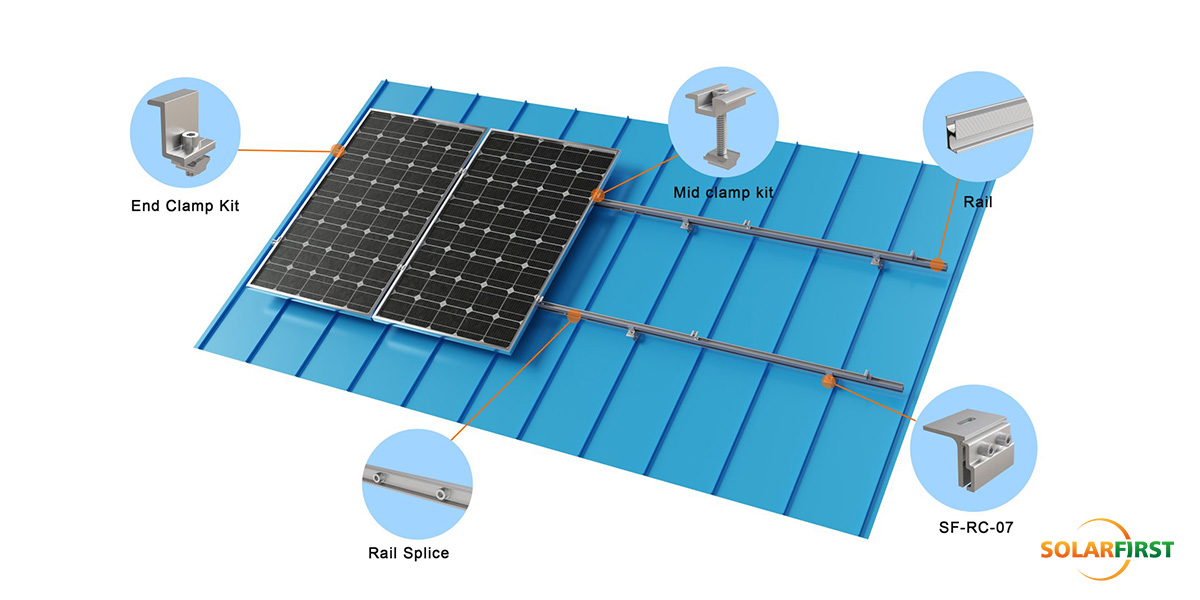

02 附件示意图

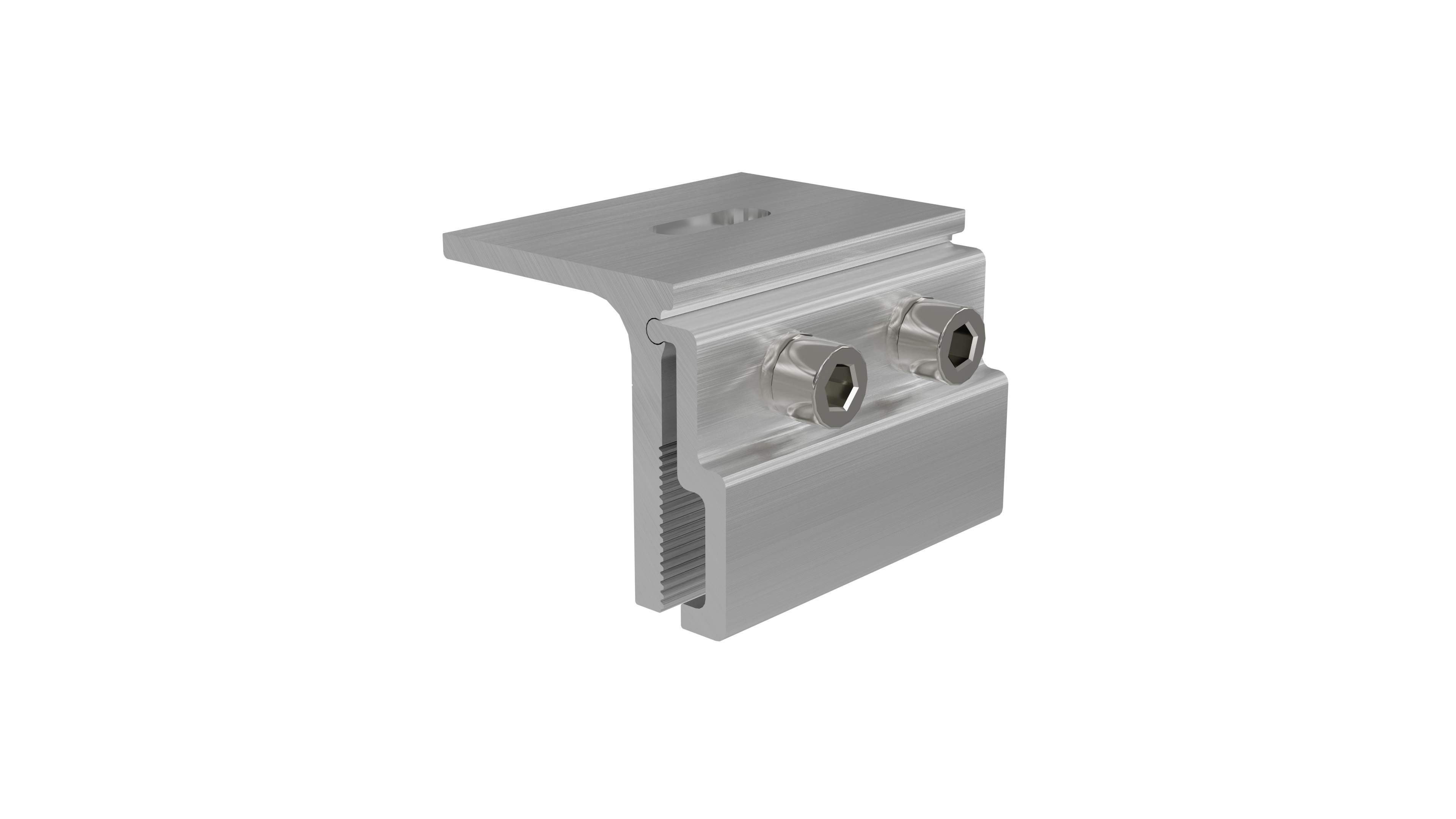

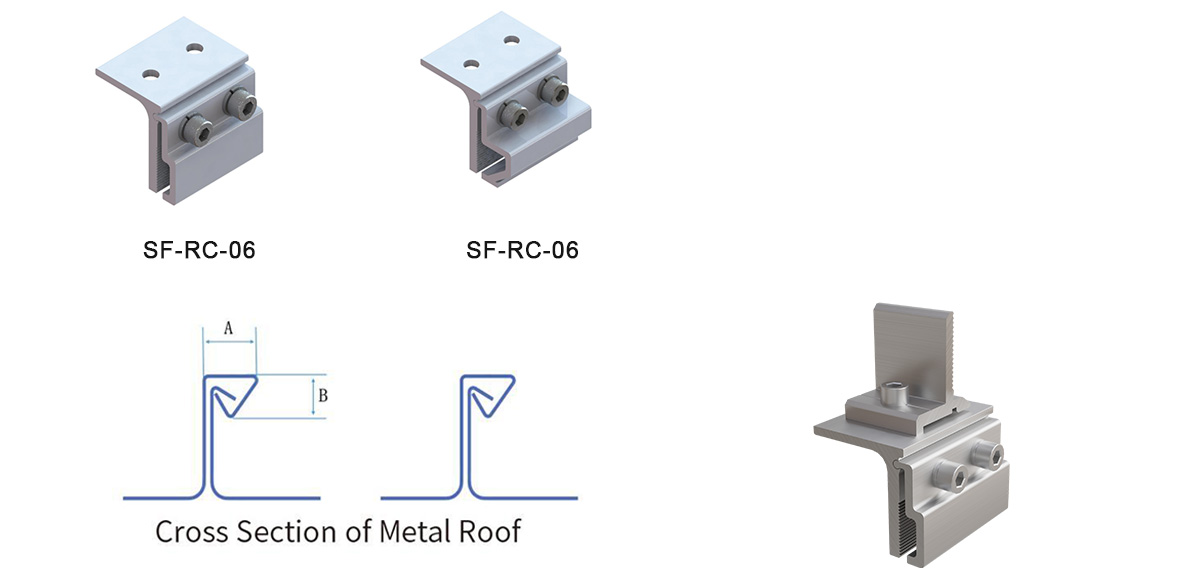

03 产品组件
04 核心工程参数
| 关键指标 | 参数详细信息 |
| 适用屋顶 | 直立锁边/锁边金属屋顶 |
| 风荷载 | 60米/秒 |
| 雪荷载 | 1.4千牛/平方米 |
| 倾斜角度 | 与屋顶平行 |
| 主要材质 | 阳极氧化铝AL6005-T5，不锈钢SUS304 |
| 标准 | GB50009-2012、EN1990:2002、ASCE7-05、AS/NZS1170、JIS C8955:2017、GB50429-2007 |
| 保修单 | 10年保修 |
05 行业应用场景
✔ 制造工厂：汽车/电子厂房屋顶
✔ 冷链物流中心：大型仓库屋顶
✔ 农业温室升级：轻钢框架温室
06 专业技术服务
▶ 方案设计与结构分析：
提供专业的负载报告、夹具布置模拟和BIM可视化解决方案。
▶ 现场勘探支持：
工程师对屋顶状况进行现场勘察，以确认安装条件和风险点。
▶ 安装培训及指导：
提供标准化的安装视频、操作手册及现场技术指导，确保施工零失误。
07 技术验证体系
提供标准化的安装视频、操作手册及现场技术指导，确保施工零失误。
07 技术验证体系
▶ 极端环境测试
• 通过-40℃低温冲击
• 盐雾腐蚀（3000+小时）
• 60米/秒飓风模拟等极端测试。
▶ 第三方认证
• 我们持有TUV、SGS等机构颁发的抗风压、雪压、抗震、材质认证证书，确保全球项目的合规性。
08 包裹和运输
国际标准包装；货物从中国上海、宁波、天津、厦门、深圳港口发出。

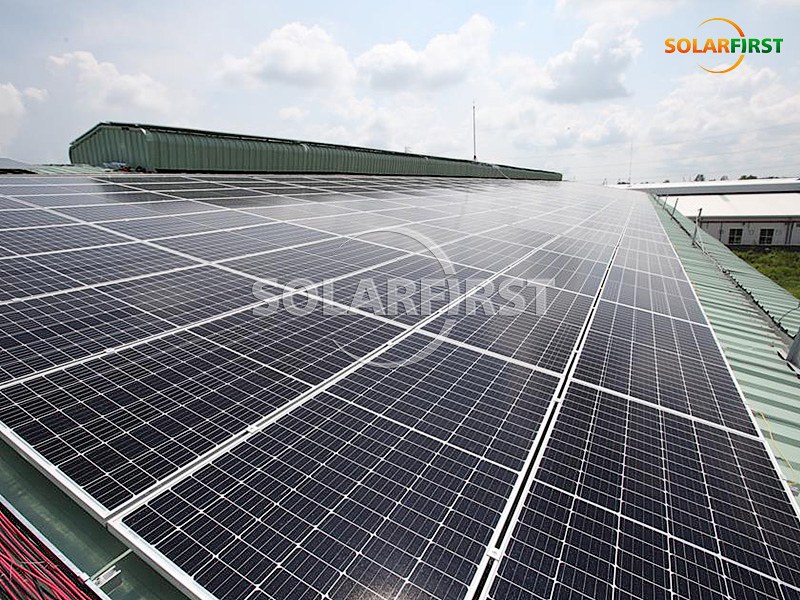

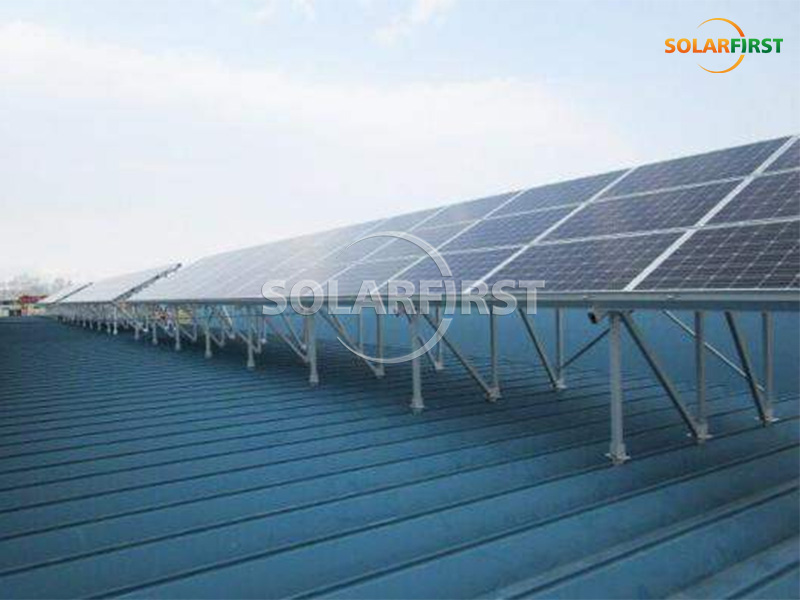

09项目案例
The Klip Lok Solar Metal Roof Mount is a professionally engineered, high-strength aluminum solution designed for a secure and precise connection to metal roof sheets. Its optimized design significantly reduces installation time and overall cost.
细节
This versatile L-foot mounting system accommodates corrugated, trapezoidal, and asbestos roofing sheets, with multiple fastener options for fast and secure installation. Fully compliant with international wind and snow load standards, it ensures reliability across diverse climates.
细节
Standing seam roof clamps are non-penetrating devices used to securely attach various accessories, such as solar panels, snow guards, and fall protection systems, to standing seam metal roofs without drilling or damaging the roof surface.
细节
U-Rail solar metal roof mounts are a cost-effective, rail-less solar mounting solution designed specifically for trapezoidal metal (tin) roofs. They feature a simple design that uses short U-shaped aluminum rails fixed directly to the roof ridges.
细节
Metal roof mounts with adjustable legs are widely available, typically designed as part of solar panel mounting systems to optimize the panel tilt angle for maximum energy production. These systems often utilize durable anodized aluminum and stainless steel components.
细节
A non-destructive installation fixture specially designed for wave-shaped color steel tile roof photovoltaic systems. The fixture is made of high tensile strength aluminum and, through a unique clamping structure, firmly fixes the solar panel system at the peak of the wave tiles without penetrating the roof panel. This fundamentally solves the potential roof leakage problems caused by traditional installation methods and is an ideal installation solution for industrial and commercial rooftop photovoltaic projects.
细节
Angular Solar Roof Clamps is a non-penetrating solar installation fixture specially designed for metal vertical seam roofs. It is made of high-strength aluminum alloy and stainless steel, and is directly fixed to the roof vertical joint through mechanical clamping without the need for drilling.
细节
Designed specifically for industrial and commercial trapezoidal color steel tile roof photovoltaic systems with extremely high requirements for structural strength. This fixture adopts a penetrating fixation scheme. It integrates the fixture, color steel tile and roof purlin into one through high-strength fasteners, achieving the most direct and secure load transmission. It is a reliable choice for dealing with extreme wind load environments.
细节
