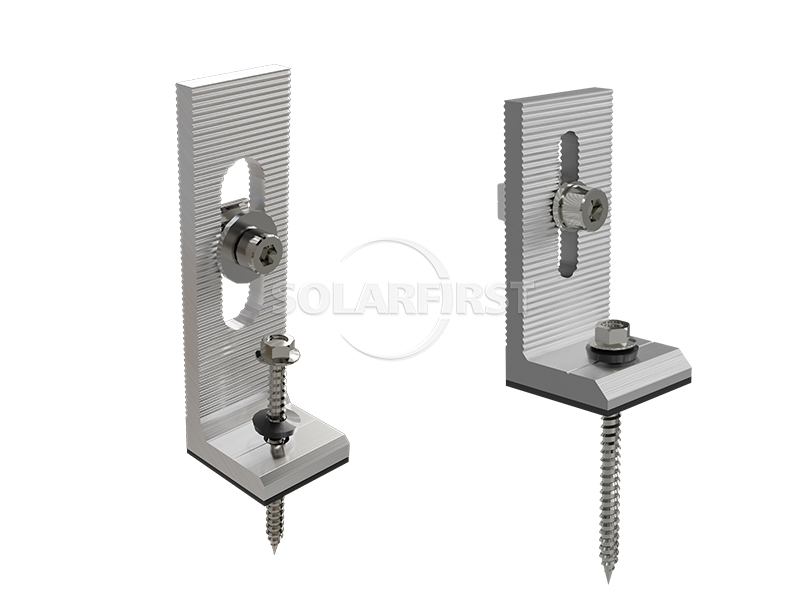

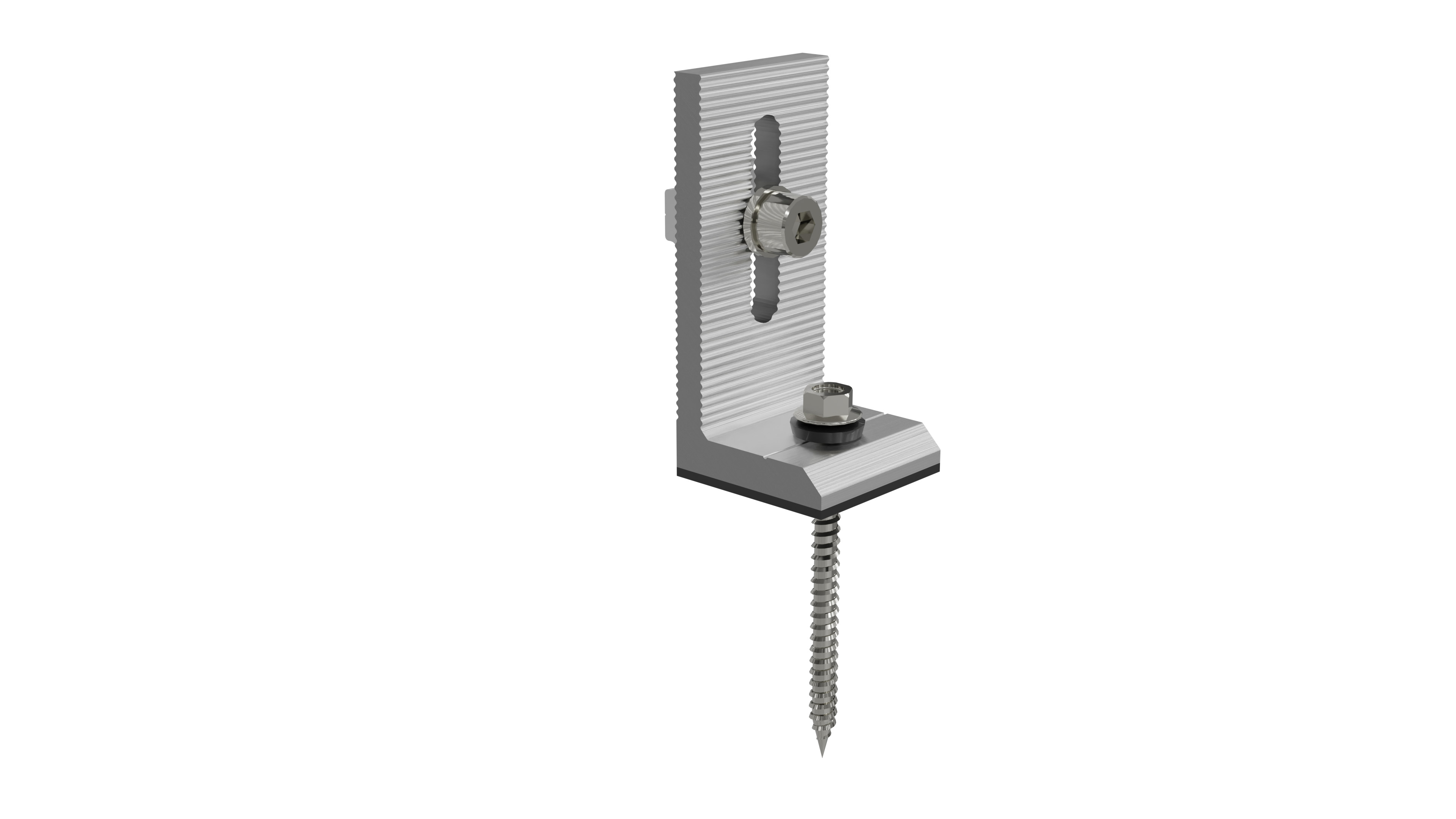

This versatile L-foot mounting system accommodates corrugated, trapezoidal, and asbestos roofing sheets, with multiple fastener options for fast and secure installation. Fully compliant with international wind and snow load standards, it ensures reliability across diverse climates.
颜色/外观选项 :
Silver black材质及表面处理 :
Anodized Aluminum 6005 T5, Stainless Steel 304认证 :

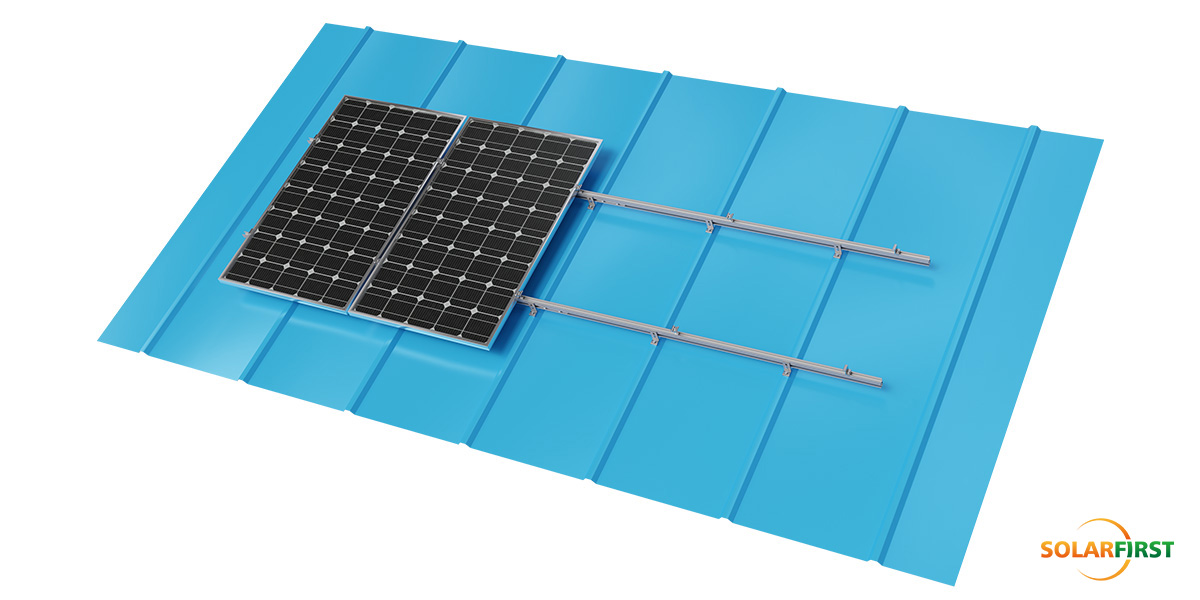

ISO，SGS，CE带 L 型支脚的 SF 太阳能屋顶支架为梯形金属屋顶提供了简化、高效的支架解决方案，其特点是安装顺序合理、快速。

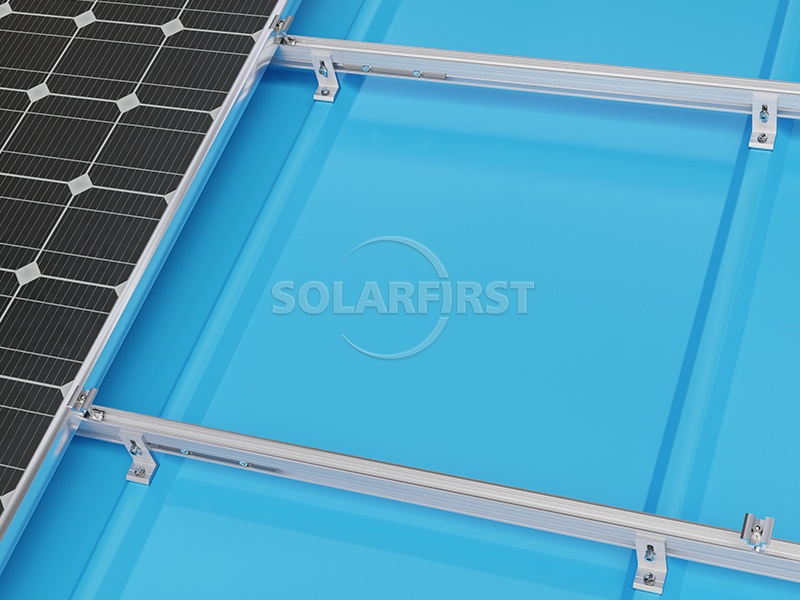

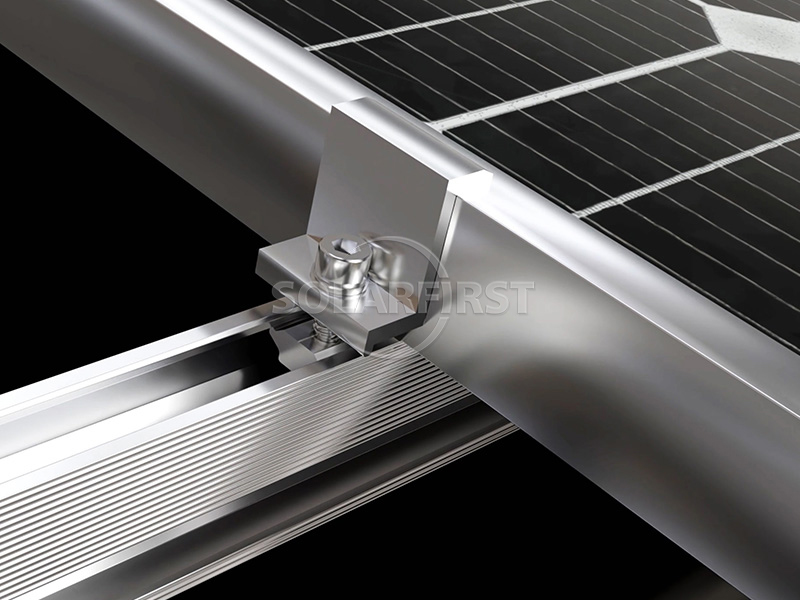

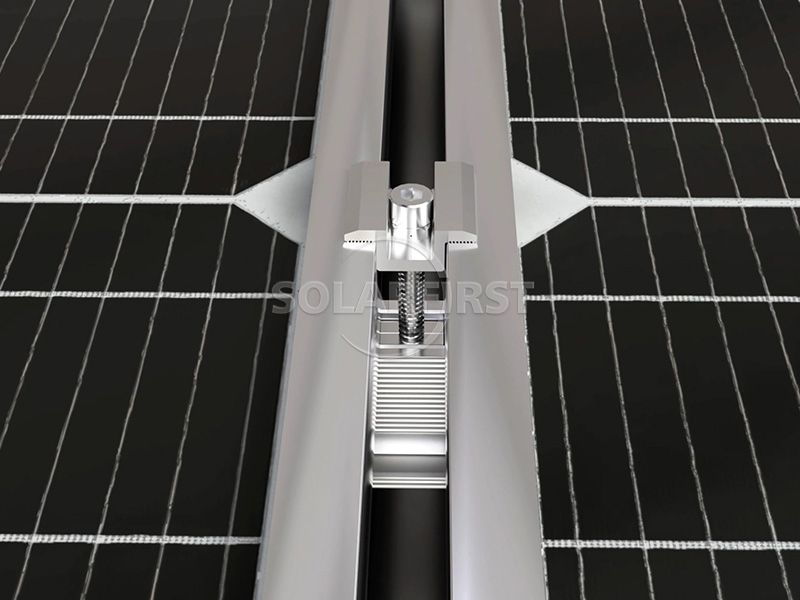

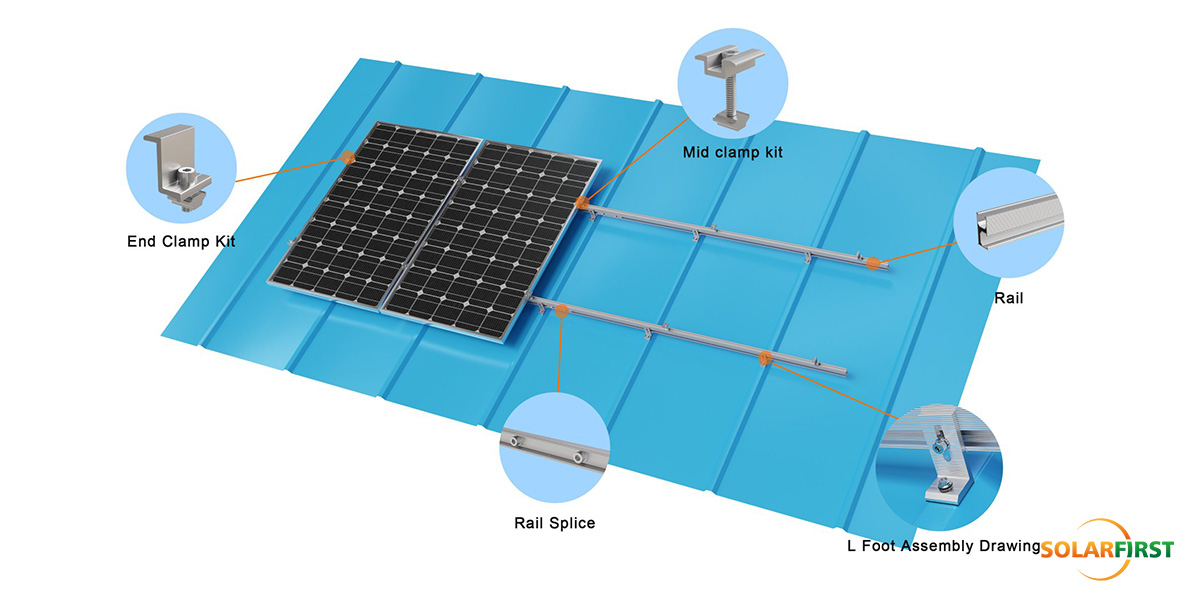

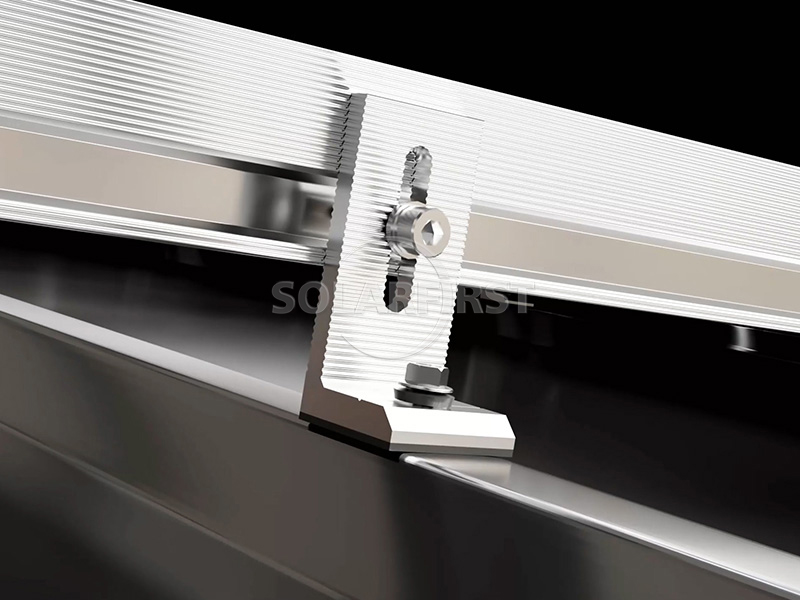

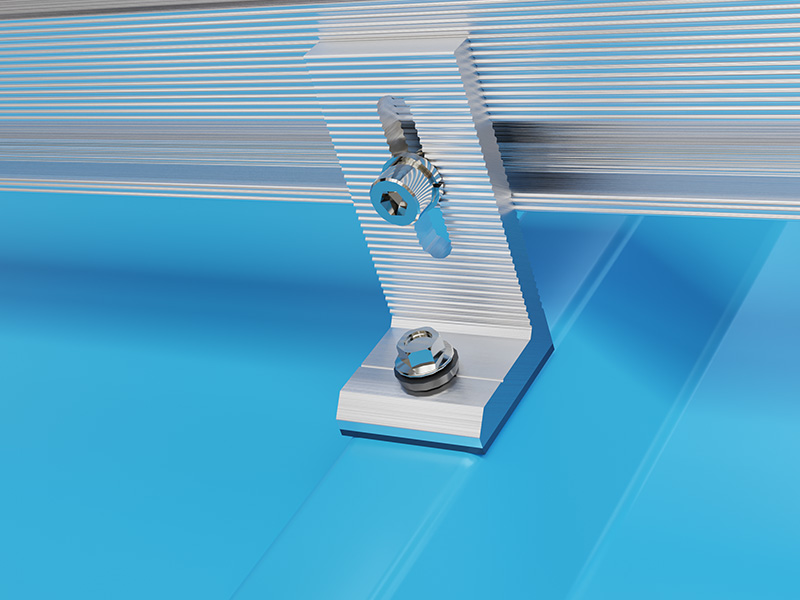

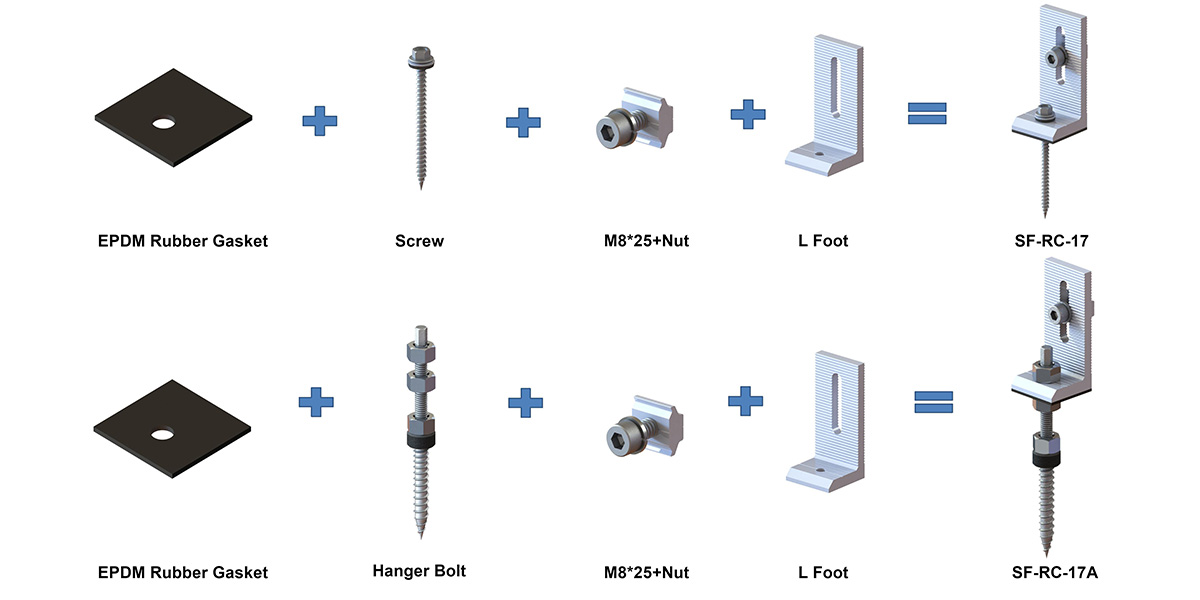

安装过程从标记和钻孔开始，然后使用自攻螺钉安装 L 型支脚套件。之后，使用专用连接器固定并连接导轨，形成连续的支撑结构。将光伏组件放置在组装好的导轨上，并使用预装的端部和中部夹具将其牢固固定。这种清晰、循序渐进的流程可确保快速部署并降低人工成本。
该系统安装简便，性能卓越，可承受高达 60 米/秒的风荷载和 1.4 千牛/平方米的雪荷载。它采用耐用的阳极氧化铝 AL6005-T5 和不锈钢 SUS304 制成，并提供 10 年质保，确保屋顶的长期可靠性。
| 关键指标 | 参数详细信息 |
| 适用屋顶 | 梯形金属瓦屋顶 |
| 风荷载 | 60米/秒 |
| 雪荷载 | 1.4千牛/平方米 |
| 倾斜角度 | 与屋顶平行 |
| 主要材质 | 阳极氧化铝AL6005-T5，不锈钢SUS304 |
| 标准 | GB50009-2012、EN1990:2002、ASCE7-05、AS/NZS1170、JIS C8955:2017、GB50429-2007 |
| 保修单 | 10年保修 |
05 适用场景
✔ 制造工厂：汽车/电子厂房屋顶
✔ 冷链物流中心：大型仓库屋顶
✔ 农业温室升级：轻钢框架温室
06 专业技术服务
▶ 方案设计与结构分析：
提供专业的负载报告、夹具布置模拟和BIM可视化解决方案。
▶ 现场勘探支持：
工程师对屋顶状况进行现场勘察，以确认安装条件和风险点。
▶ 安装培训及指导：
提供标准化的安装视频、操作手册及现场技术指导，确保施工零失误。
07 技术验证体系
▶ 极端环境测试
• 通过-40℃低温冲击
• 盐雾腐蚀（3000+小时）
• 60米/秒飓风模拟等极端测试。
▶ 第三方认证
• 持有TUV、SGS等机构颁发的抗风压、雪压、抗震、材质认证证书，确保全球项目的合规性。
08 包裹和运输
国际标准包装；货物从中国上海、宁波、天津、厦门、深圳港口发出。

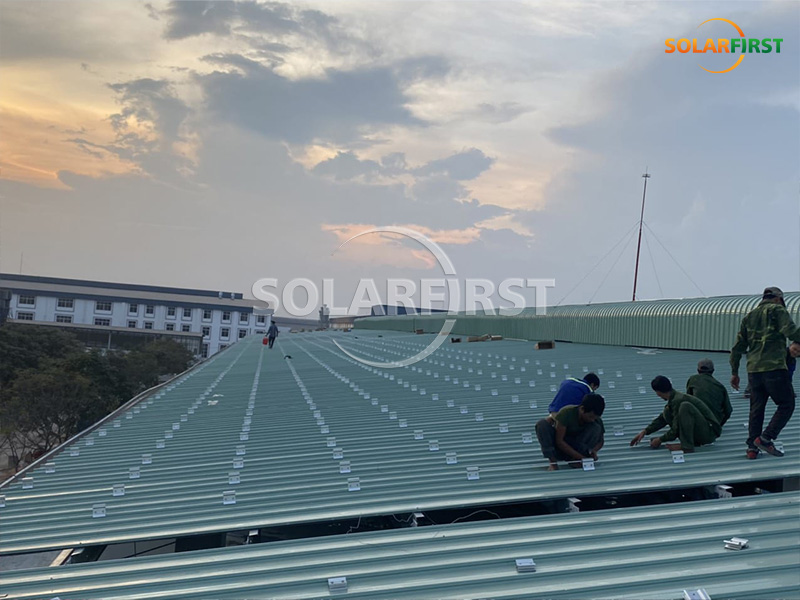

09项目案例
