01 产品描述

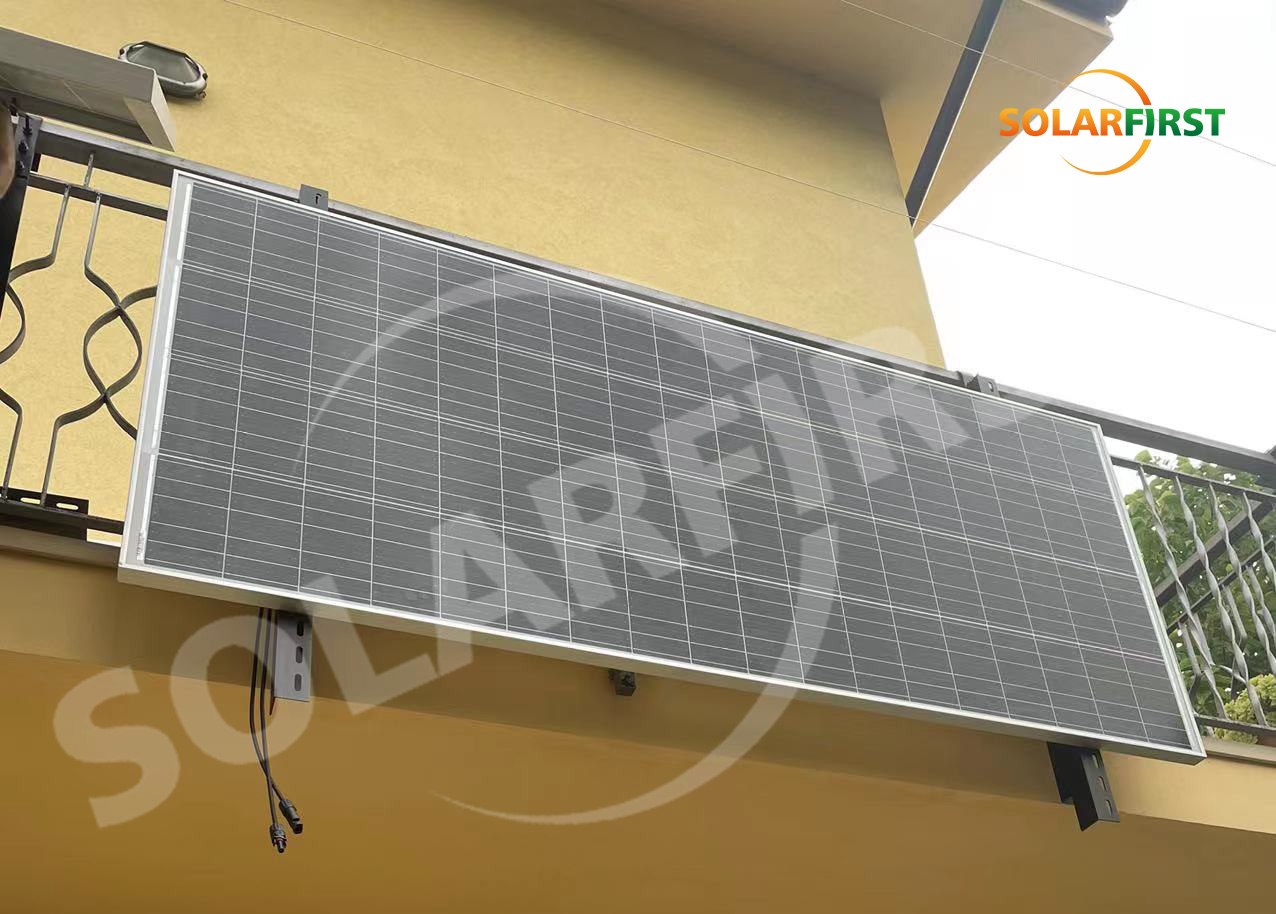

SF 阳台支架为家庭阳台太阳能系统提供创新解决方案，其配备可调节角度的太阳能电池板，可在有限的空间内优化发电效率。这些专为家庭阳台安装而设计的安装支架，为房主提供了一种实用的方法，让他们能够利用之前闲置的空间来生产太阳能。
这款阳台安装系统具有 25° 至 50° 的宽广倾斜调节范围，可帮助房主全年最大限度地利用阳光。预组装结构简化了安装过程，只需展开并固定到现有的阳台栏杆上，无需专业工具或进行复杂的改装。其灵活的设计可适应各种阳台类型，并可根据需要配置为墙面或地面安装。
该系统按照住宅安全标准设计，可承受高达 60 米/秒的风荷载和 1.4 千牛/平方米的雪荷载。该安装解决方案采用耐腐蚀阳极氧化铝 AL6005-T5 和不锈钢 SUS304 组件制成，支持两种标准住宅太阳能电池板尺寸（60 片和 72 片），并提供 10 年长期可靠性保修。

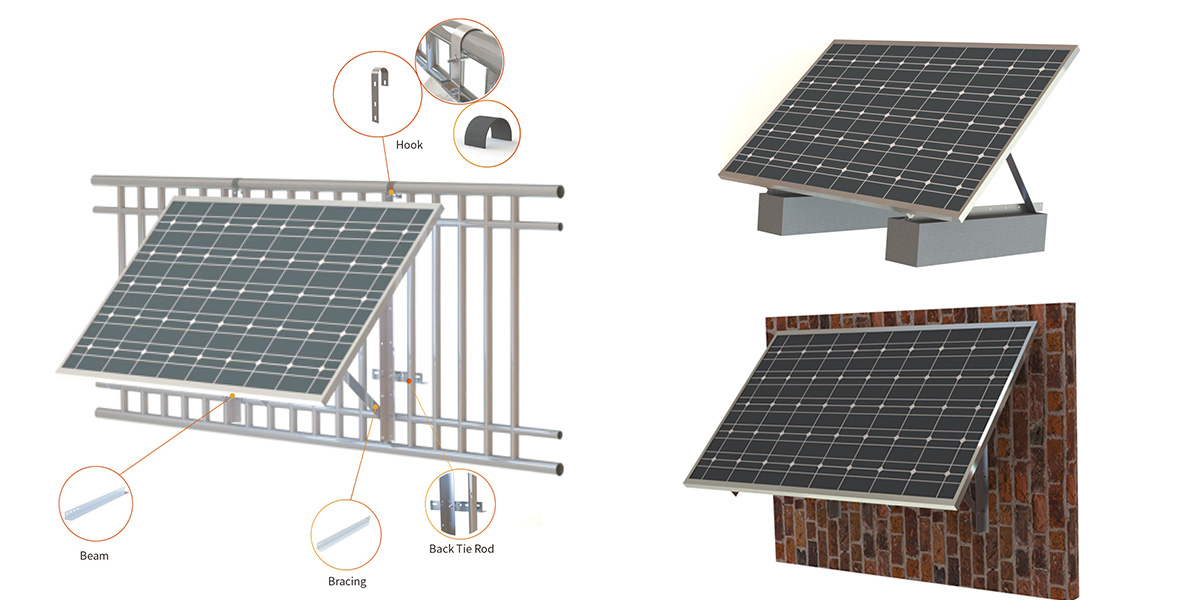

02 附件示意图
03 核心工程参数
| 关键指标 | 参数详细信息 |
| 适用屋顶 | 地面/混凝土屋顶 |
| 风荷载 | 60米/秒 |
| 雪荷载 | 1.4千牛/平方米 |
| 倾斜角度 | 5°、10°、15° |
| 主要材质 | 阳极氧化铝AL6005-T5，不锈钢SUS304 |
| 标准 | GB50009-2012、EN1990:2002、ASCE7-05、AS/NZS1170、JIS C8955:2017、GB50429-2007 |
| 保修单 | 10年保修 |
0574 行业应用场景
✔ 住宅阳台栏杆光伏系统
✔ 商业建筑护栏光伏改造
✔ 简单的墙壁/地板支撑要求
05 专业技术服务
▶ 方案设计与结构分析：
提供专业的负载报告、夹具布置模拟和BIM可视化解决方案。
▶ 现场勘探支持：
工程师对屋顶状况进行现场勘察，以确认安装条件和风险点。
▶ 安装培训及指导：
提供标准化的安装视频、操作手册及现场技术指导，确保施工零失误。
06 技术验证体系
提供标准化的安装视频、操作手册及现场技术指导，确保施工零失误。
07 技术验证体系
▶ 极端环境测试
• 通过-40℃低温冲击
• 盐雾腐蚀（3000+小时）
• 60米/秒飓风模拟等极端测试。
▶ 第三方认证
• 我们持有TUV、SGS等机构颁发的抗风压、雪压、抗震、材质认证证书，确保全球项目的合规性。
07 包裹和运输
国际标准包装；货物从中国上海、宁波、天津、厦门、深圳港口发出。
