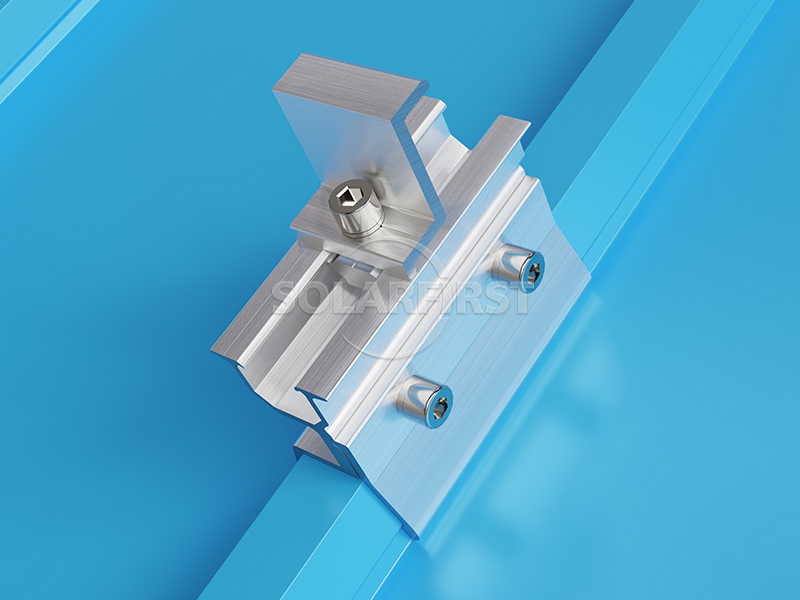

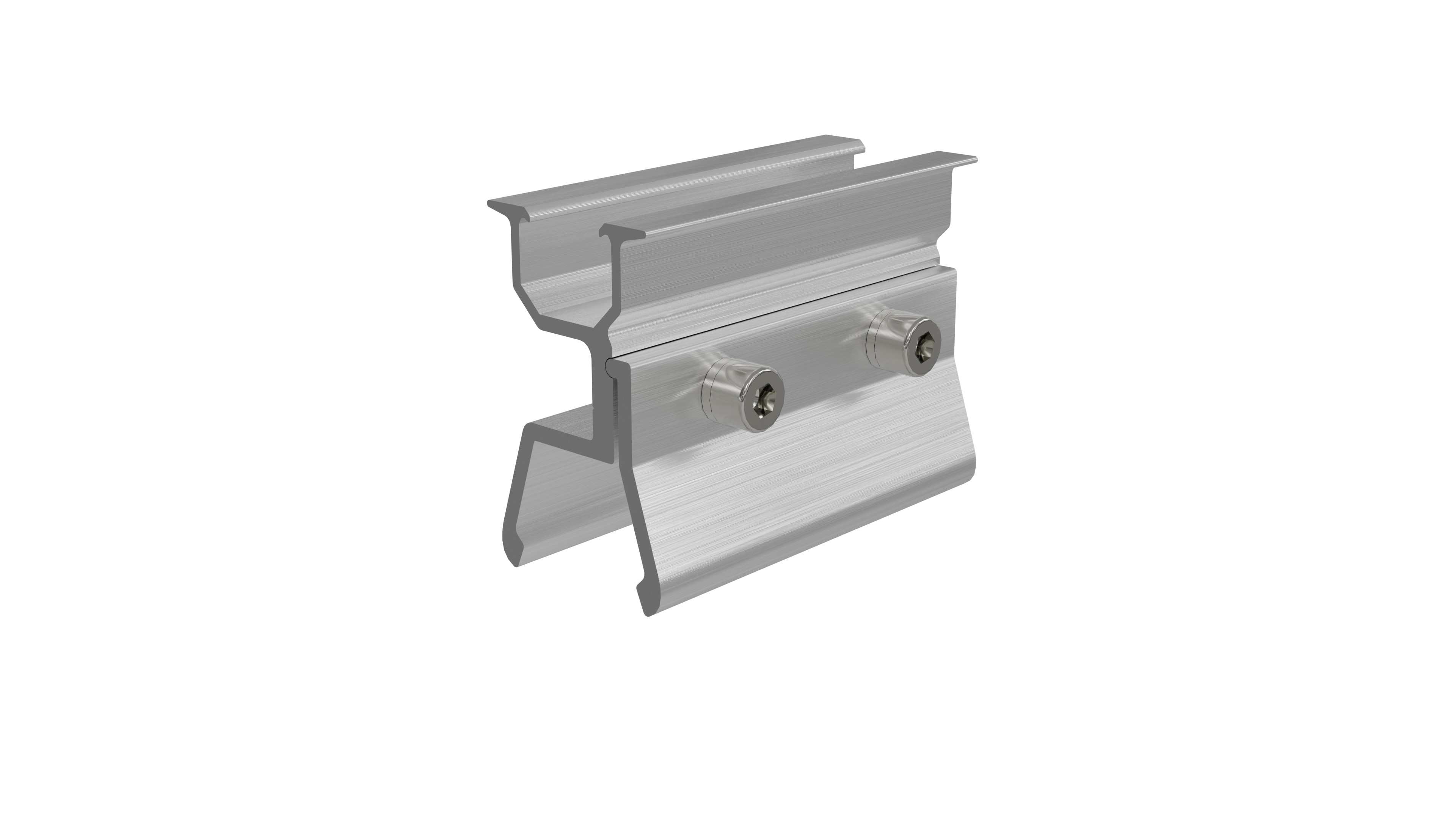

01 产品描述
铝制迷你轨道是一款非穿透式金属屋顶安装系统，专为梯形金属板设计。该系统采用阳极氧化铝 6005-T5 材质制成，具有卓越的耐腐蚀性和结构耐用性。
与传统的夹具解决方案相比，这种迷你导轨太阳能支架具有显著的优势：
阳极氧化铝结构确保长期耐腐蚀。
能够根据图纸进行精确定位，消除安装错误和调整。
无需较长的车顶导轨即可快速安装，减少劳动时间。
无需钻孔，彻底避免潜在的泄漏风险。
紧凑轻巧的设计最大限度地降低了运输成本并节省了集装箱空间。
这种轻质、无轨道、无需钻孔的解决方案使 Solar First Mini Rail Clip Lock 项目经济高效、节省时间且组装极其简单。

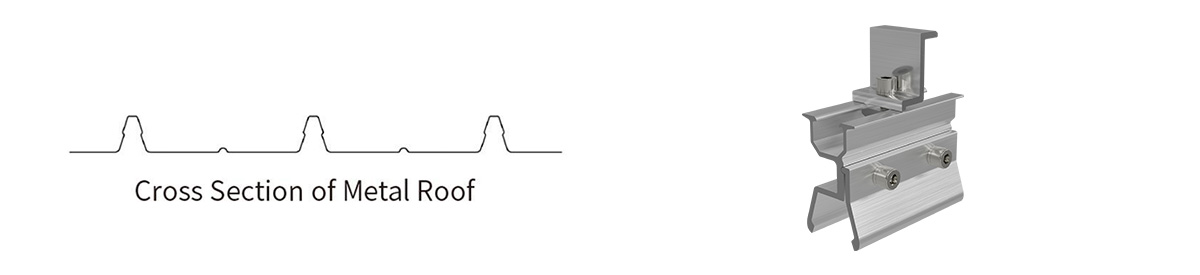

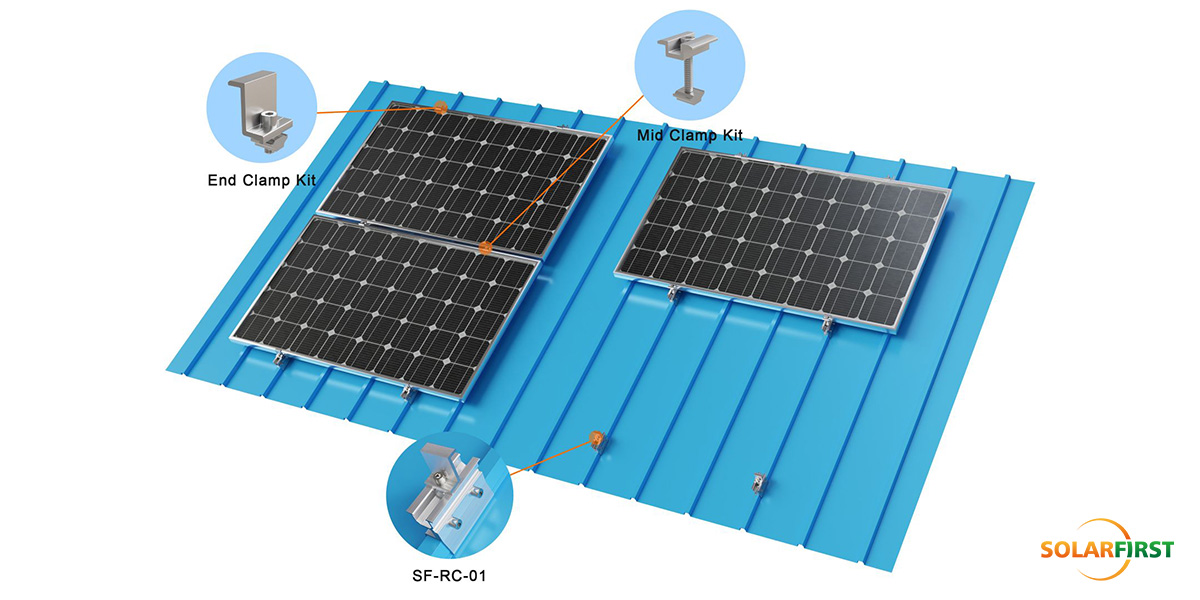

02 附件示意图

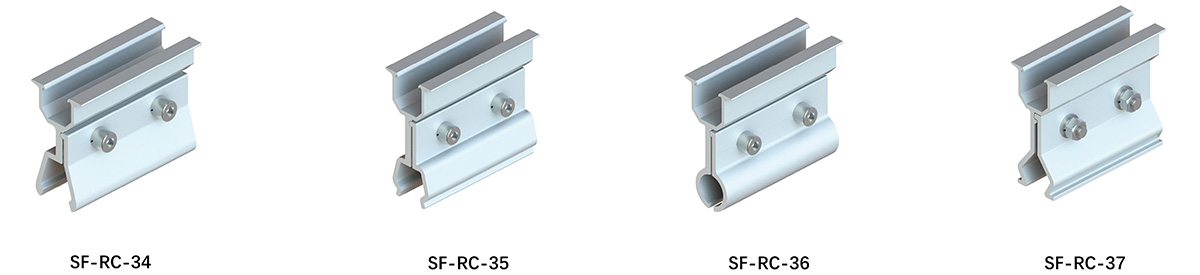

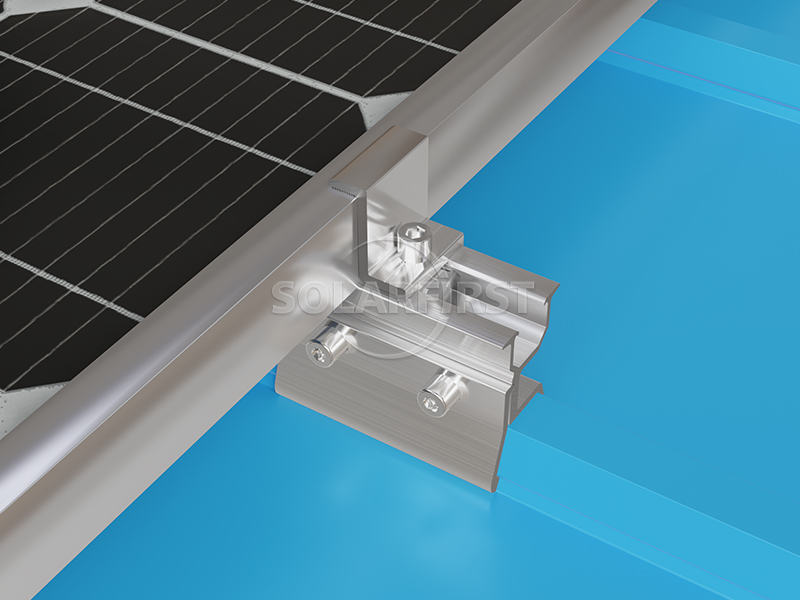

03 产品组件
| 尺寸（毫米） | A | B | C | D |
| SF-RC-34 | 12.7 | 19.1 | 24.5 | 20.2 |
| SF-RC-35 | 17.9 | 13.8 | 25 | 16.2 |
| SF-RC-36 | 0 | 10.1 | 20.2 | 7.1 |
| SF-RC-37 | 0 | 12.3 | 24.6 | 14.7 |
04 核心工程参数
| 关键指标 | 参数详细信息 |
| 适用屋顶 | 金属屋顶 |
| 风荷载 | 60米/秒 |
| 雪荷载 | 1.4千牛/平方米 |
| 倾斜角度 | 与屋顶平行 |
| 主要材质 | 阳极氧化铝AL6005-T5，不锈钢SUS304 |
| 标准 | GB50009-2012、EN1990:2002、ASCE7-05、AS/NZS1170、JIS C8955:2017、GB50429-2007 |
| 保修单 | 10年保修 |
05 行业应用场景
✔ 制造工厂：汽车/电子厂房屋顶
✔ 冷链物流中心：大型仓库屋顶
✔ 农业温室升级：轻钢框架温室
06 专业技术服务
▶ 方案设计与结构分析：
提供专业的负载报告、夹具布置模拟和BIM可视化解决方案。
▶ 现场勘探支持：
工程师对屋顶状况进行现场勘察，以确认安装条件和风险点。
▶ 安装培训及指导：
提供标准化的安装视频、操作手册及现场技术指导，确保施工零失误。
07 技术验证体系
▶ 极端环境测试
• 通过-40℃低温冲击
• 盐雾腐蚀（3000+小时）
• 60米/秒飓风模拟等极端测试。
▶ 第三方认证
• 我们持有TUV、SGS等机构颁发的抗风压、雪压、抗震、材质认证证书，确保全球项目的合规性。
08 包裹和运输
国际标准包装；货物从中国上海、宁波、天津、厦门、深圳港口发出。

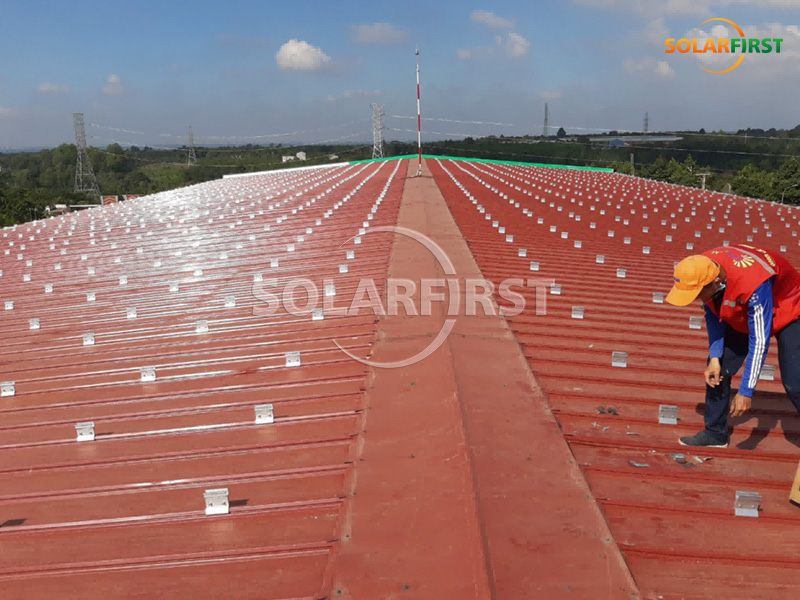

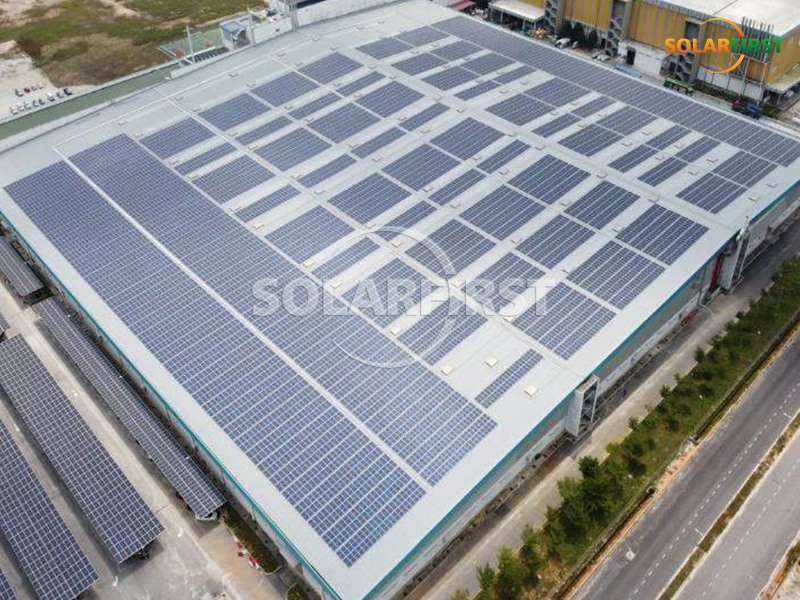

09项目案例
